625.000 ₫
IN STOCK

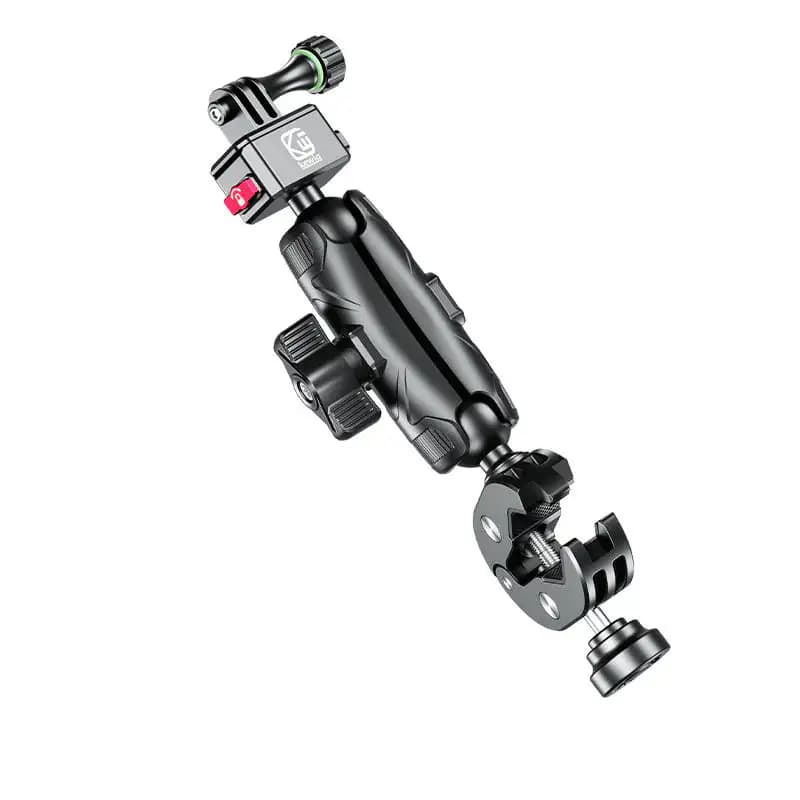

The Kewig R22B-C13 camera mount set has three parts: a 16 to 45 mm tube clamp with a ball and an anti-theft screw, a dual-socket arm, and the R22-B quick-release mount with a three-prong plate. The clamp stays on the bike, you squeeze two buttons and carry the camera. Price 625,000 VND.
Clamp stays on
When the bike sits in a parking lot all day, the claw clamp stays on the handlebar while you take the camera with you. The claw clamp grips 16 to 45 mm tubes and has a 1 inch ball on top. The anti-theft screw sits on the clamp's tightening shaft and opens with the separate key in the box. The screw only holds the clamp on the bike, it does not lock the camera. BigBike has test-clamped it on a 22 mm handlebar at the shop.
Arm and release
When fitting, loosen the middle knob of the dual-socket arm, turn the camera to face the right way, then tighten. One knob locks both ends. Stopping at a coffee shop, squeeze the black and red buttons together to lift the camera off with its plate. The mount base stays on the bike. While riding, turn the red button flat to lock the mount. BigBike has test-fitted a GoPro HERO directly and a DJI Osmo Action via the adapter that comes with the DJI camera.
Fitting the set

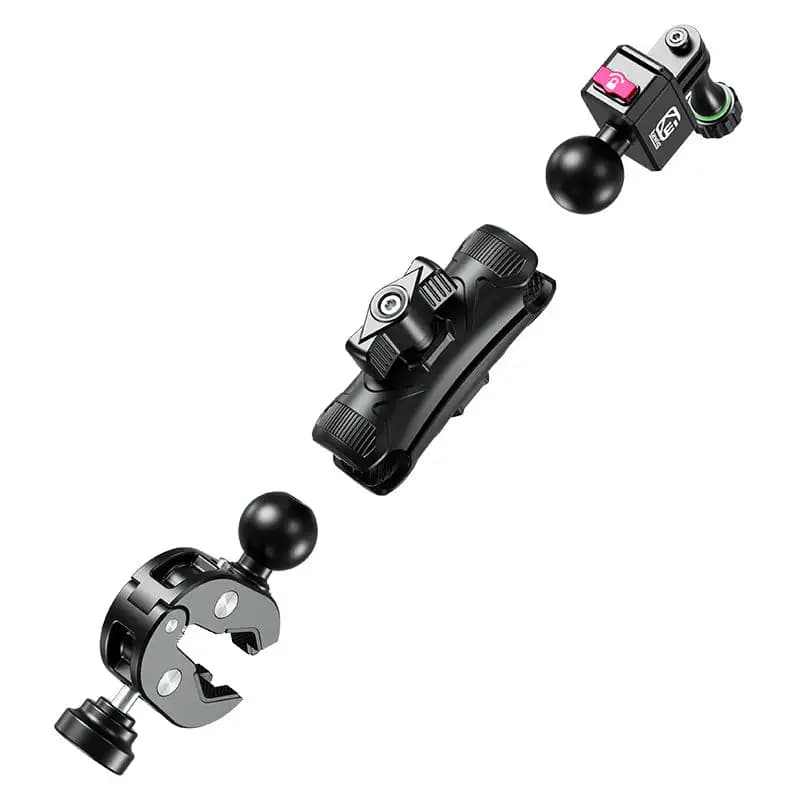

To fit it, set the claw clamp on the tube and tighten the anti-theft screw with the key from the box. The dual-socket arm joins the ball on the clamp to the ball under the mount base.
Tighten the anti-theft screw → Join the two balls → Fit camera to plate → Tighten the thumb screw → Slide into the base → Turn the red button flat.
The box holds all six parts. Keep the key somewhere separate.
All three parts come in the set, ready to fit to a round tube out of the box.
The camera comes off with you without taking the claw clamp off the handlebar.
Both ball sockets share one knob to lock the camera angle after adjusting.
The claw clamp only grips 16 to 45 mm tubes, outside that range it will not clamp.
A DJI Osmo Action needs the adapter that comes with the DJI camera to fit the three-prong plate.
Scooters with fully covered handlebars need a crossbar bought first.
BigBike does not promise a load rating or riding speed.
| Tube clamped or camera fitted | Does the R22B-C13 work |
|---|---|
| 22 mm handlebar | Yes. BigBike has test-clamped it |
| Other round tubes within 16 to 45 mm: thick handlebars, crash bars, crossbars | Fits by tube size. BigBike has not tested these tubes |
| Tubes under 16 mm or over 45 mm | NO. The clamp cannot grip them |
| Scooter with fully covered handlebars, no bare tube | Fit a Kewig HB4-L, HB3-H or HB5 crossbar first, then clamp onto the 22 mm bar |
| GoPro HERO camera with two-prong foot | Yes. BigBike has test-fitted it |
| DJI Osmo Action camera | Yes, via the adapter that comes with the DJI camera. BigBike has test-fitted it |
| Camera with only a 1/4 inch thread, no two-prong foot | Message BigBike before ordering. Not tested |
| Already have a 1 inch ball clamp on the bike, only missing the mount | See the Kewig R22-B quick-release mount sold separately |
| Only need a tube clamp with a ball, no mount or arm | See the Kewig C9P claw clamp |
A 16 to 45 mm tube and a camera with a two-prong foot or adapter means the Kewig R22B-C13. On a fully covered scooter, fit a crossbar first.
| Type | Camera mount set for round tubes, three parts, black |
|---|---|
| Tube clamp | Claw clamp with grooved jaws, grips round tubes 16 to 45 mm. One 1 inch ball on top |
| Anti-theft | Anti-theft screw on the clamp's tightening shaft, opened with the separate key in the box. The screw only holds the clamp on the bike, it does not lock the camera |
| Arm | Metal arm with two 1 inch ball sockets, one middle knob locks both ends |
| Quick-release mount | Two-piece Kewig R22-B mount: the base with a 1 inch ball stays on the bike, the GoPro three-prong plate stays on the camera. Squeeze the black and red buttons together to release. Turn the red button flat to lock, once locked it cannot be squeezed open |
| Camera foot | GoPro three-prong plate, the camera's two-prong foot slots in and is tightened with the thumb screw |
| Weight | 338 g |
| Test-fitted by BigBike | Clamped on a 22 mm handlebar at the shop. Fitted a GoPro HERO, and a DJI Osmo Action via the adapter that comes with the DJI camera |
| In the box | Claw clamp with ball, dual-socket arm, R22-B mount base, three-prong plate, thumb screw, anti-theft key |
| Warranty | 12 months |
