655.000 ₫
IN STOCK

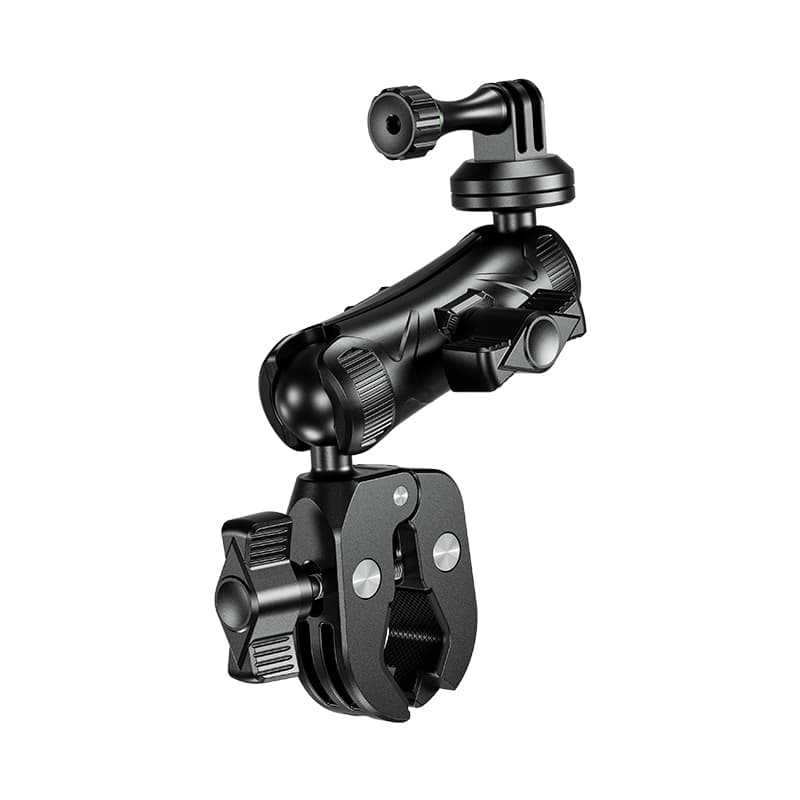

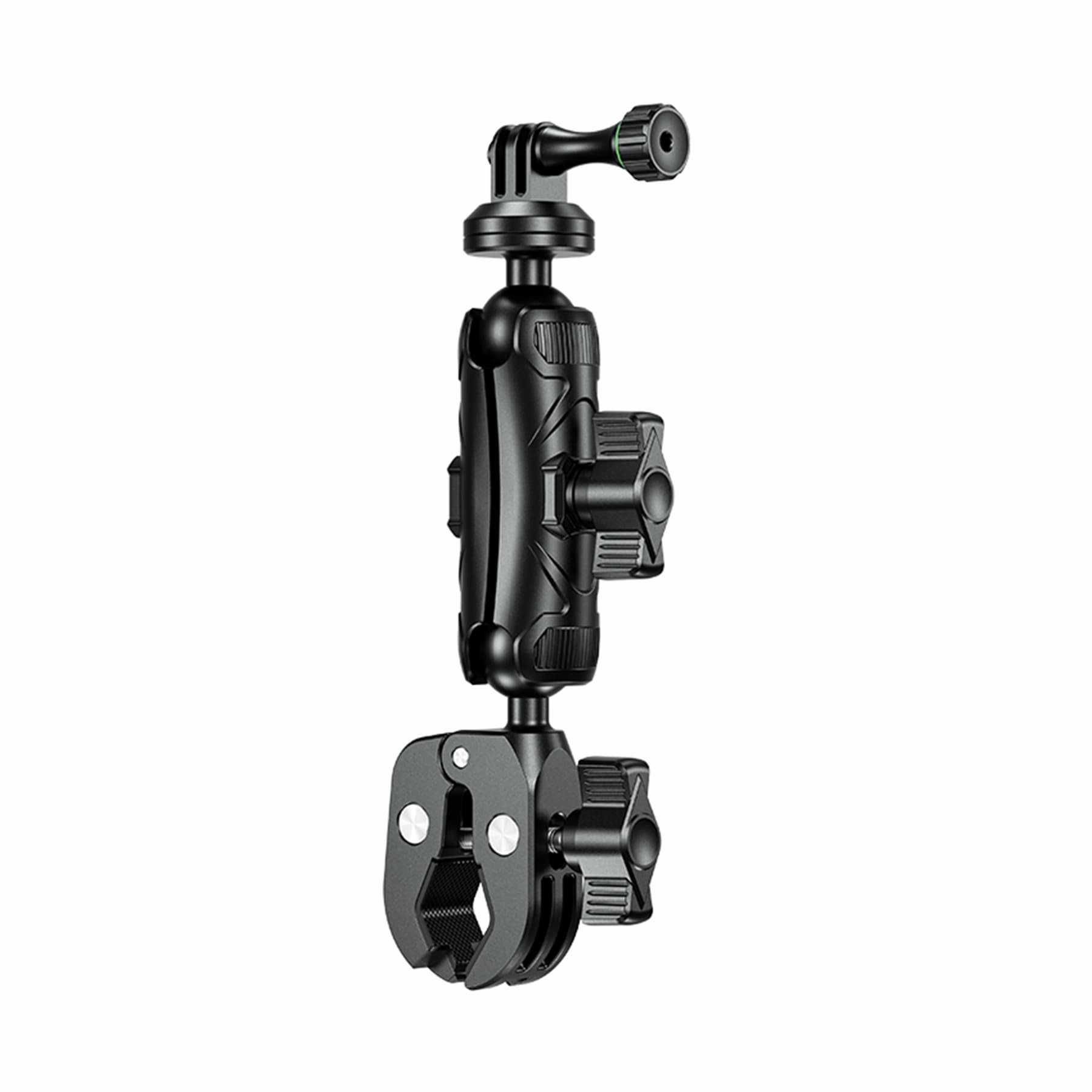

The Kewig R14-SET four-piece GoPro camera mount set clamps 12 to 45 mm tubes, and its 9 cm arm pushes the camera further out. BigBike has mounted a GoPro HERO directly on the base and a DJI Osmo Action through the adapter that comes with DJI cameras. The set has no anti-theft screw. Price 655,000 VND for the set.
9 cm arm
When the camera is clamped tight to the handlebar, the frame catches the instrument cover and brake lines. The 9 cm arm pushes the camera away from the clamp, and you adjust the angle at both ball ends. The 1 inch ball head connects to the GoPro three-prong base. BigBike has mounted a GoPro HERO straight onto the base and a DJI Osmo Action through the adapter that comes with DJI cameras.
12 to 45 mm clamp
Before a trip into the northwest mountains, pick a bare section of tube on the bike to clamp. The claw clamp wraps round tubes from 12 to 45 mm and tightens with a hand knob, no tools needed. BigBike has test-clamped it on a 22 mm shop bike handlebar and an adventure bike crash bar. Scooters fully covered in plastic with no bare tube cannot take the clamp directly.
Fitting
Fit it at home before hitting the highway, the box has all four pieces.
Clamp onto the tube → Attach the arm → Fit the ball head → Fit the three-prong base → Mount the camera → Angle then tighten.
The set has no anti-theft screw, so take the camera with you when parking. If you need an anti-theft screw at the clamp, see the Kewig R22B-C13 set.
The 9 cm arm moves the camera clear of the instrument cover and brake lines.
Hand knobs on the clamp and arm, no tools needed to tighten.
Camera angle adjusts at both ball ends.
Mounted with both a GoPro HERO and a DJI Osmo Action via its adapter.
The claw clamp has no anti-theft screw.
Tubes over 45 mm are outside the clamp range.
Scooters fully covered in plastic with no bare tube cannot take the clamp directly.
| Bike, tube or camera | Does the R14-SET work |
|---|---|
| 22 mm handlebar | Yes. BigBike has test-clamped it |
| Adventure bike crash bar | Yes. BigBike has test-clamped it |
| Other round tube from 12 to 45 mm | Yes. Measure the tube before ordering |
| Tube over 45 mm | NO. The clamp cannot wrap it |
| Scooter fully covered in plastic, no bare tube | NO direct clamping |
| GoPro HERO | Yes. Mounts straight onto the three-prong base. BigBike has mounted it |
| DJI Osmo Action | Yes, via the adapter that comes with DJI cameras. BigBike has mounted it |
| Other GoPro three-prong cameras | Message BigBike before ordering. Not tested |
| Need an anti-theft screw at the clamp | See the Kewig R22B-C13 set |
With a 12 to 45 mm round tube and a GoPro three-prong camera, choose the Kewig R14-SET. If you need an anti-theft screw, see the Kewig R22B-C13.
| Type | Four-piece GoPro camera mount set for tubes on the bike, black |
|---|---|
| Clamp range | Round tubes 12 to 45 mm in diameter |
| Arm | 9 cm plastic arm with a 1 inch ball socket at each end, angle adjusts at both ends |
| Assembly order | Claw clamp on the tube → 9 cm arm → 1 inch ball head → GoPro three-prong base → camera |
| Tightening | Claw clamp and arm tighten with hand knobs, no tools needed |
| Anti-theft | No anti-theft screw |
| In the box | 4 pieces: C9P claw clamp, J2G 9 cm arm, R15B 1 inch ball head, R14 GoPro three-prong base |
| Cameras mounted by BigBike | GoPro HERO straight onto the three-prong base. DJI Osmo Action via the adapter that comes with DJI cameras |
| Test-clamped by BigBike | 22 mm shop bike handlebar. Adventure bike crash bar |
| Warranty | 12 months |
