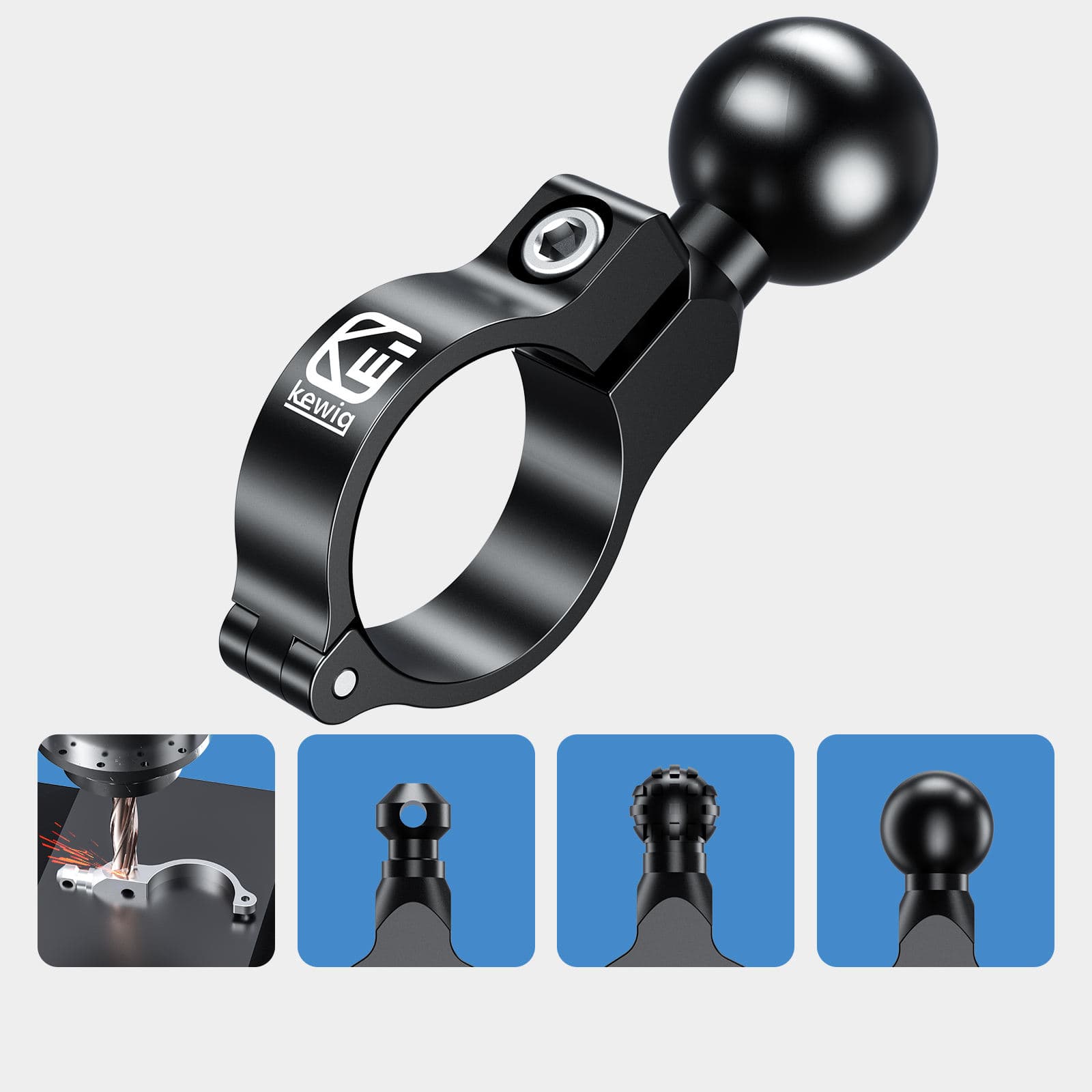

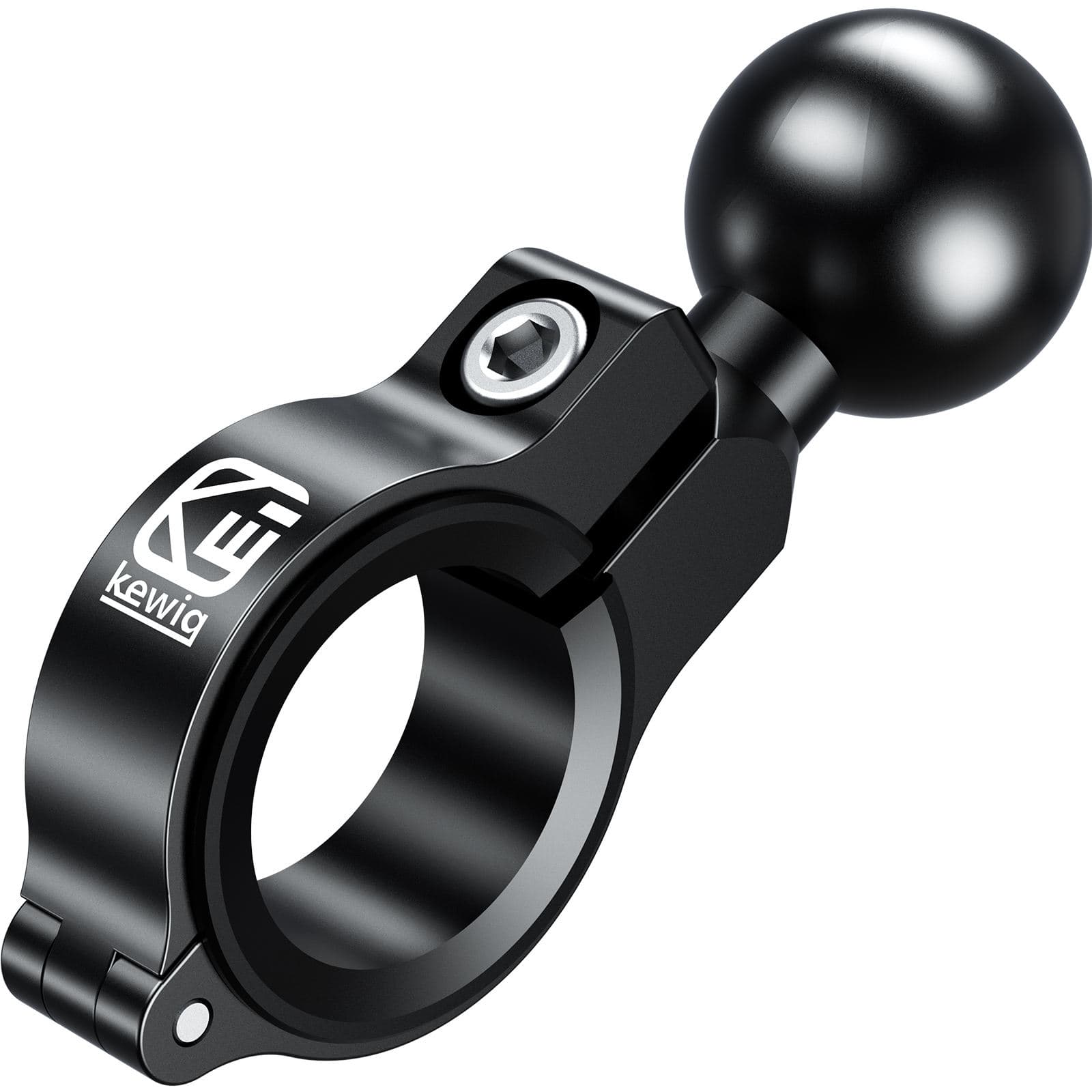

The Kewig C2U2 handlebar clamp puts one 1-inch ball on a bare handlebar. It fits three tube sizes only: 22 mm, 25.4 mm and 32 mm, each with the liner shown in the fitment table. One clamp costs 196,000 VND.
Where the setup starts
On a daily commuter with no point to take a joint arm, the clamp adds one 1-inch ball to the bare handlebar. From the clamp you need the Kewig J1S ball joint arm, and only then a phone mount or camera mount with a 1-inch ball. The clamp alone does not hold a device. BigBike has test-fitted it on a bare handlebar, on the tube of the mirror-stem bracket and on a Kewig crossbar, all 22 mm, lined as shown in the fitment table.
Line it for the tube size
Tubes of 22 mm and 25.4 mm take the rubber insert of the same size. For a 32 mm tube, stick the 1.2 mm rubber strip inside the clamp. Do not fit the clamp on a 28.6 mm tube: message BigBike before ordering. On a scooter with a fully covered handlebar, clamp it on the tube of the Kewig H3L bracket at the mirror stem.
Clamping it on
Before a trip over mountain passes, get the clamp ready and pick the liner from the fitment table. The box holds one clamp, two rubber inserts, one adhesive rubber strip and one hex key.
Open the hinge → Fit the right liner → Wrap the clamp round the tube → Tighten the hex screw → Shake the clamp to check.
The clamp opens on a hinge and closes with one hex screw. There is no need to remove the grip or the switchgear.
Aluminium alloy clamp, weighs 76 g.
Fits by opening the hinge, so the grip and switchgear stay where they are.
Only one hex screw to tighten when fitting.

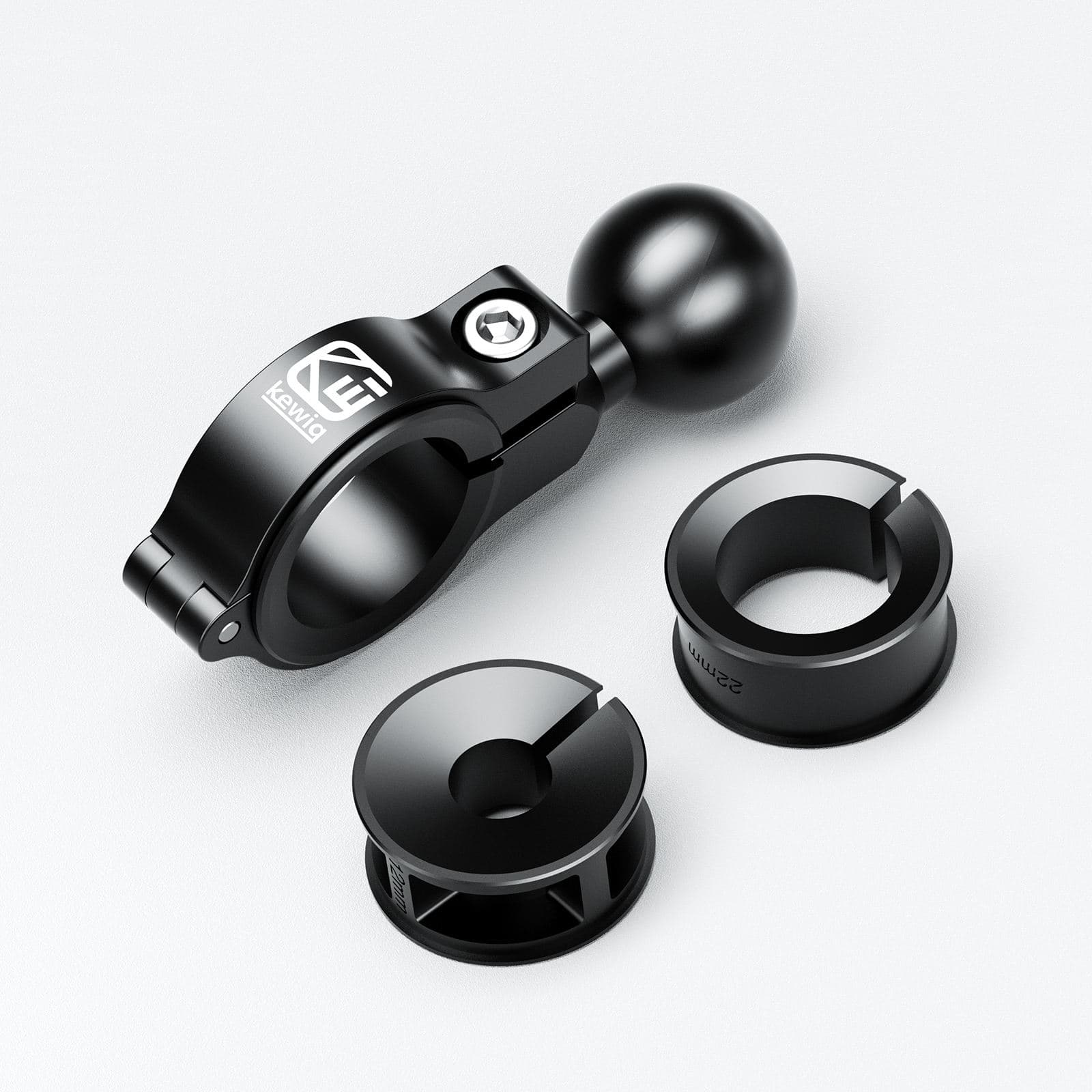

The box includes two rubber inserts and an adhesive rubber strip for the three tube sizes.
The clamp does not hold a device by itself. You need a joint arm and a phone mount or camera mount.
The three tube sizes are lined as shown in the fitment table. It does not take 28.6 mm tubes.
It needs a free stretch of bare tube and cannot clamp on a handlebar hidden under plastic covers.
BigBike does not promise a load rating.
| Where you want to clamp | Does it fit |
|---|---|
| Bare 22 mm motorcycle handlebar | Yes, with the 22 mm insert. BigBike has test-fitted it |
| 22 mm tube of the Kewig H3L bracket | Yes, with the 22 mm insert. BigBike has test-fitted it |
| Kewig crossbar with a 22 mm body | Yes, with the 22 mm insert. BigBike has test-fitted it |
| 25.4 mm round tube | Yes, with the 25.4 mm insert |
| 32 mm round tube | Yes, stick the 1.2 mm rubber strip inside the clamp |
| 28.6 mm handlebar or round tube | NO, it does not fit. Message BigBike for technical support |
| Scooter with a fully covered handlebar | NO bare tube to clamp on. See the Kewig H3L bracket at the mirror stem |
| Handlebar already full of switchgear, no free stretch | NO room for the clamp. See the Kewig H3L bracket |
Measure the tube diameter. Choose this clamp when it is exactly 22 mm, 25.4 mm or 32 mm and line it as shown in the table. For any other size, message BigBike.
| Type | Round-tube clamp with one built-in ball, aluminium alloy, black |
|---|---|
| Tube sizes it fits | Three sizes: 22 mm tube with the 22 mm insert · 25.4 mm tube with the 25.4 mm insert · 32 mm tube with the 1.2 mm rubber strip stuck inside the clamp. Does not fit 28.6 mm tubes |
| Fastening | Hinged clamp closed with one hex screw. Open the hinge to wrap it round the tube, no need to remove the grip or switchgear |
| Output | Exactly one 1-inch ball, 25.4 mm, RAM size B |
| Weight | 76 g |
| In the box | 1 clamp with ball, 1 rubber insert 22 mm, 1 rubber insert 25.4 mm, 1 adhesive rubber strip 1.2 mm, 1 hex key |
| Test-fitted by BigBike | Bare 22 mm motorcycle handlebar · 22 mm tube of the Kewig H3L bracket · Kewig crossbar with a 22 mm body |
| Next in the chain | Kewig J1S double ball joint arm, 6 cm or 9 cm, then a phone mount or camera mount with a 1-inch ball |
| Sold as | One clamp |
| Warranty | 12 months |
